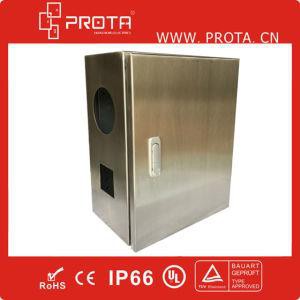

Steel Distribution Box

Material
AISI304, 316L
Surface: Hairline Finish
Protection grade: IP66 (based on EN60529)
Standard Configuration:
Front door, metal lock, galvanized mounting plate, body, and sealing gasket.
Thickness:
Body: 1.2mm THK if the height less than 800mm, after that it's 1.5mm THK instead.
Door: 1.2mm THK if the height less than 800mm, after that it's 1.5mm THK instead.
Galvanized Mounting Plate: 1.5mm THK if the height less than 800mm, after that it's 2.0mm THK instead.

Craftsmanship Characteristics
1. The foam PU sealing gasket makes sure the protection grade of box reaching IP66 level.
2. The extended border of box, hinges ensure the high intensity of box system
3. The galvanized mounting plate and the high intensity installation support bars ensure the liability of installation devices (can be used as the wiring)
4. The gland plate makes the very convenience and flexibility of inlet and outlet wiring cables
5. Wire drawing finish on the surface (sand blast can be applied inside the box for the high quality)



Selection table:

Company Information
PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: metal wall mounting enclosures, stainless steel enclosures, floor standing electric cabinets, knock-down cabinets, terminal boxes, junction boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed ROHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & ROHS certificates were issued by TUV lab in Shanghai China.
